HomeProductTruck CraneXCMG QY25K5D TRUCK CRANE
  • QY25K5D-7
  • QY25K5D-7

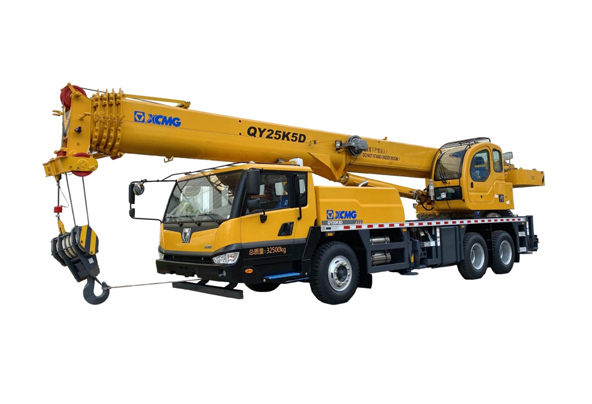

XCMG QY25K5D TRUCK CRANE

  • Outline size (L*W*H) : 12780×2500×3400mm
  • Wheel base : 4425+1350mm
  • Track(Front/ Rear ): 2059/1834mm
  • Front/ Rear overhang : 2375/2145mm
  • Front/ Rear extension : 1895/590mm
  • Total weight in travel : 32500kg
  • Max. travel speed : ≥80km/h

Product introduction



XCMG QY25K5D truck crane have four-point ball contact slewing ring. Slewing system is driven by hydraulic motor, with planetary gear reducer, for 360° continuous rotation, stepless slewing speed regulation is available.Horn button is equipped on the control lever.

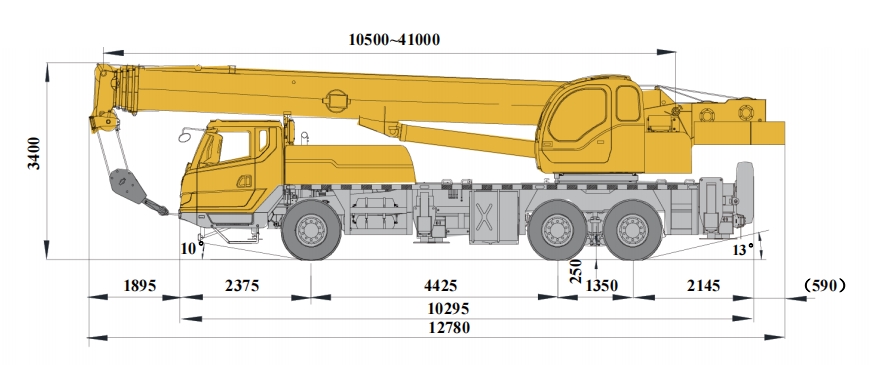

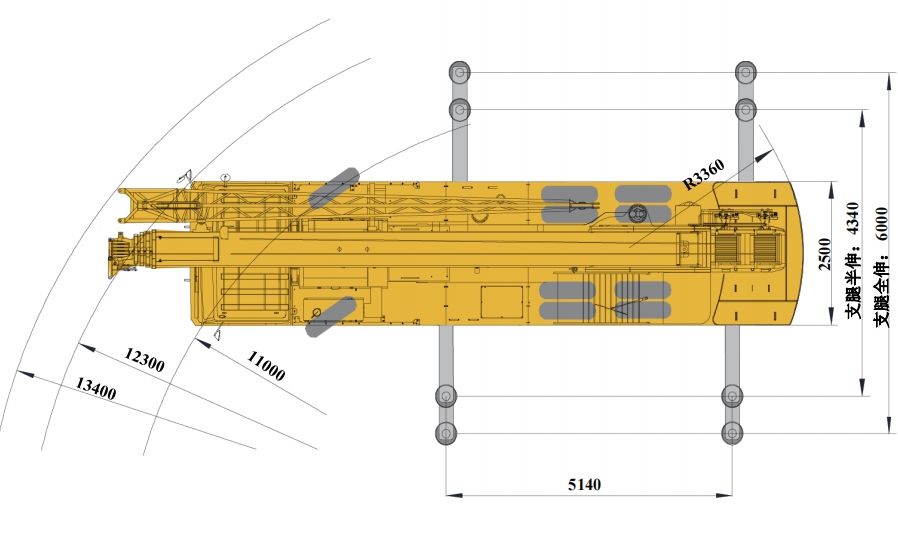

Dimensions

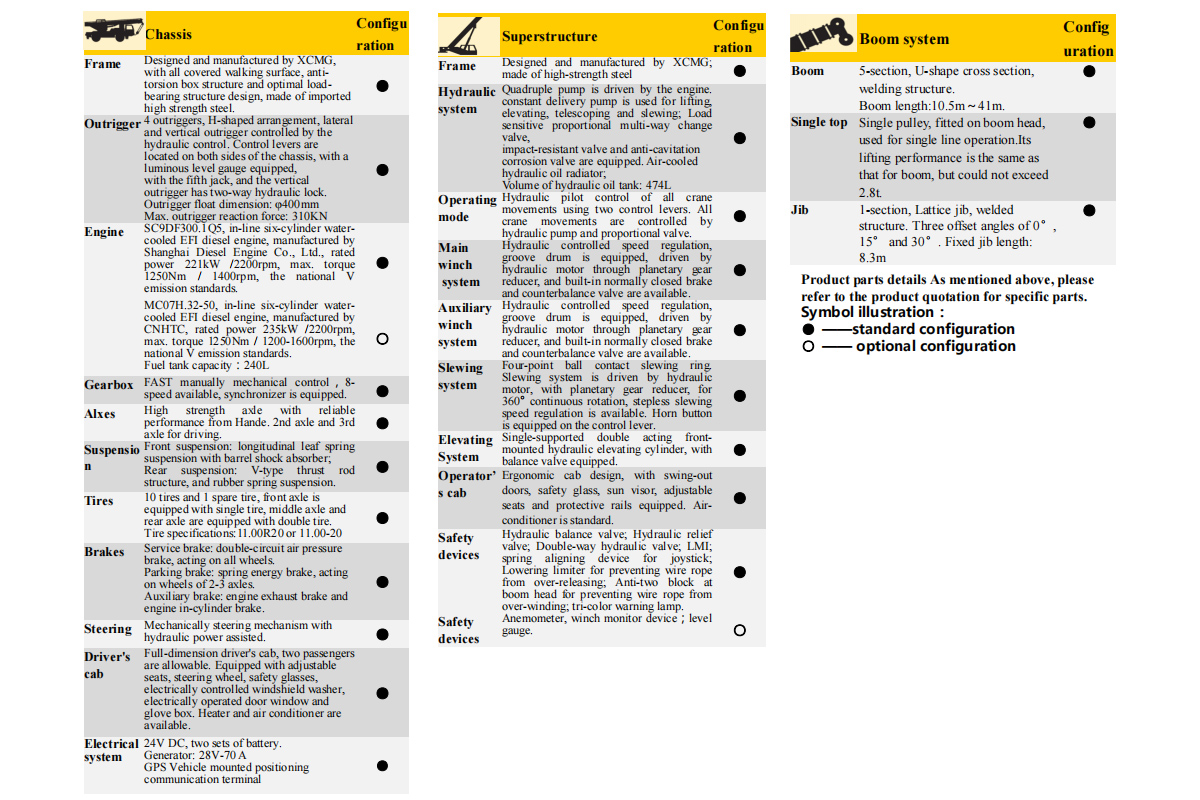

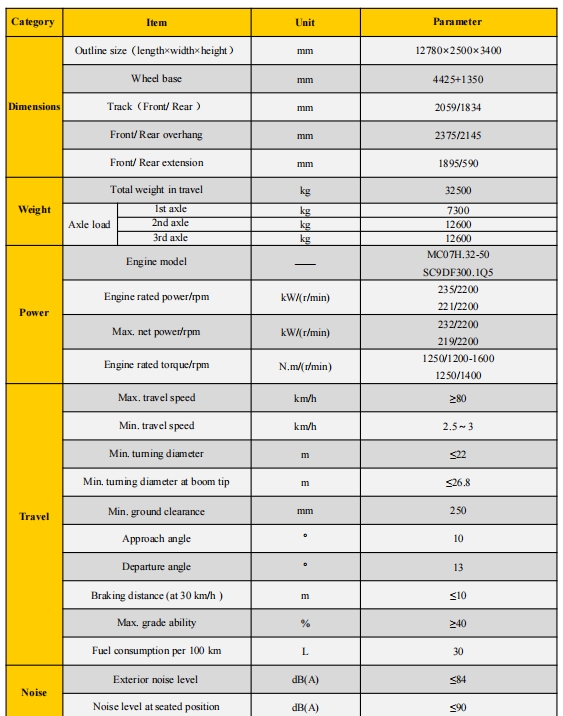

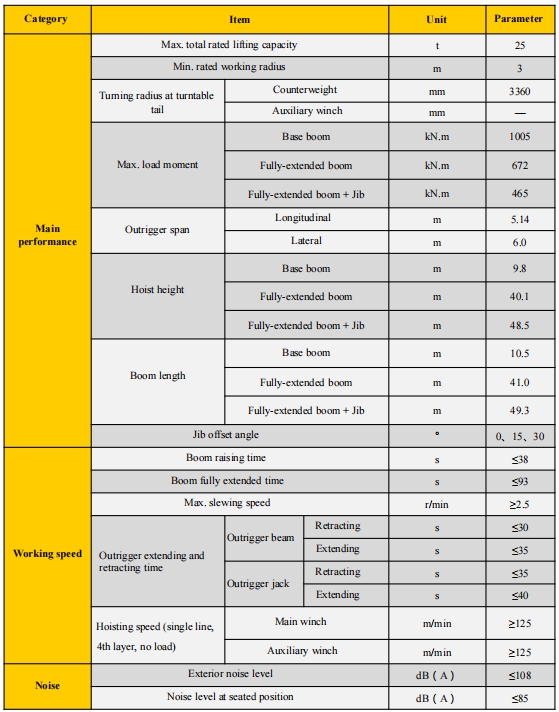

Technical specifications

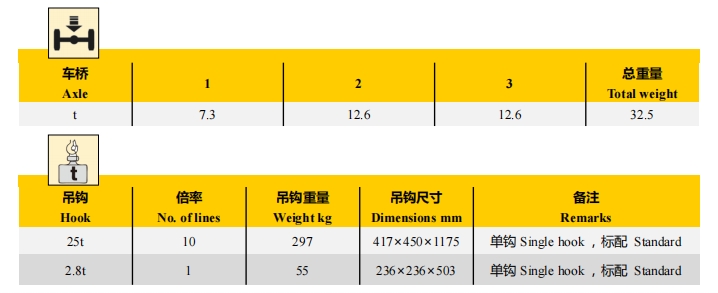

Weight

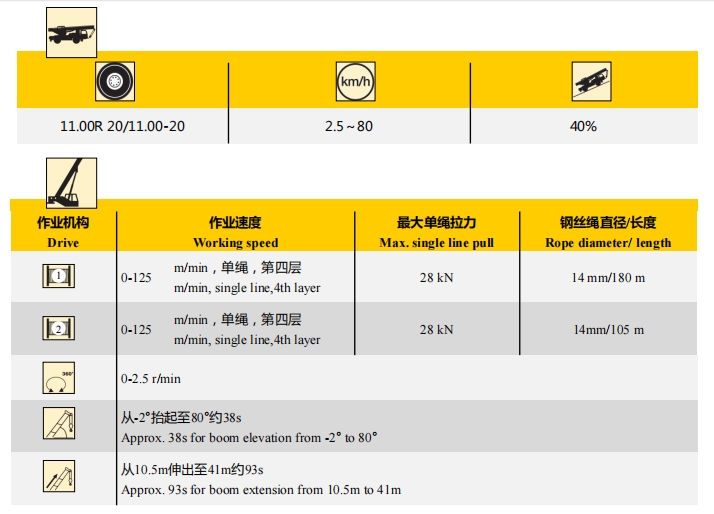

Working speeds

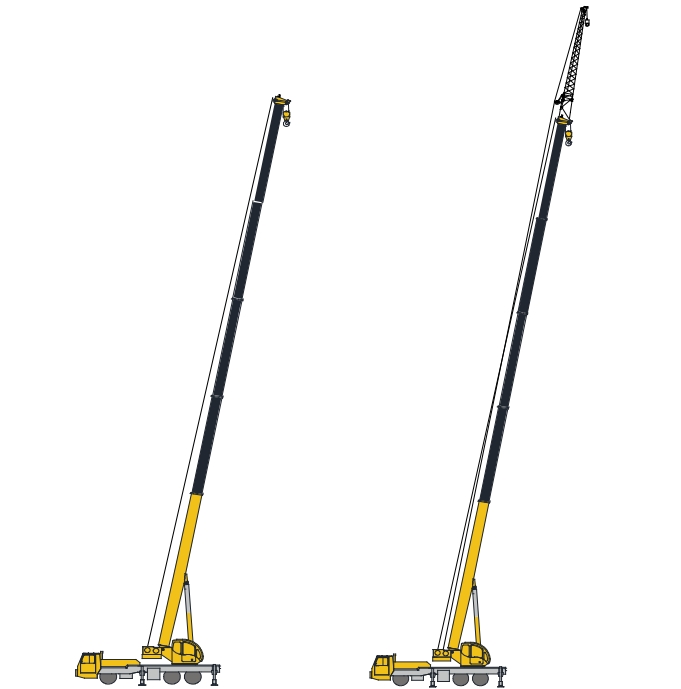

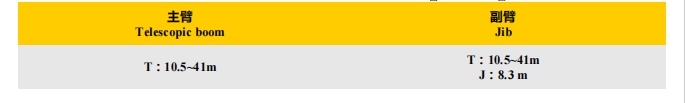

Boom / Jib combinations

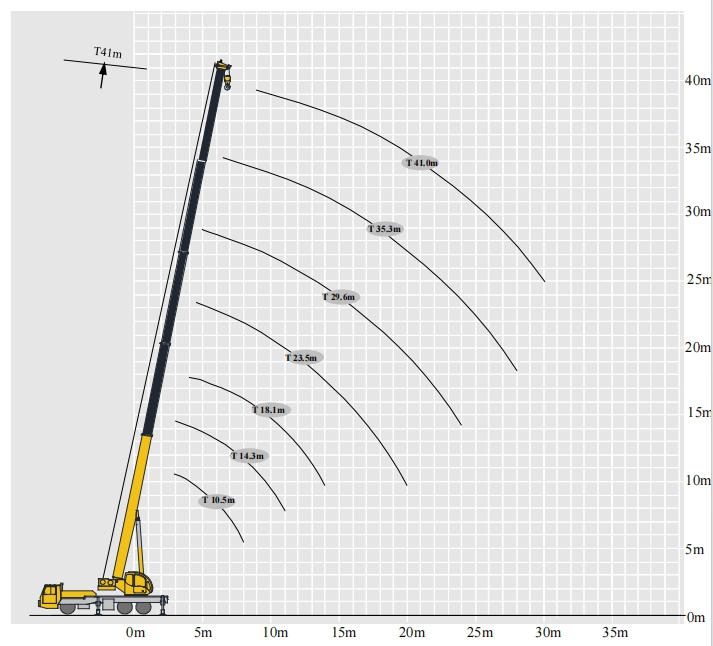

Lifting heights (Boom)

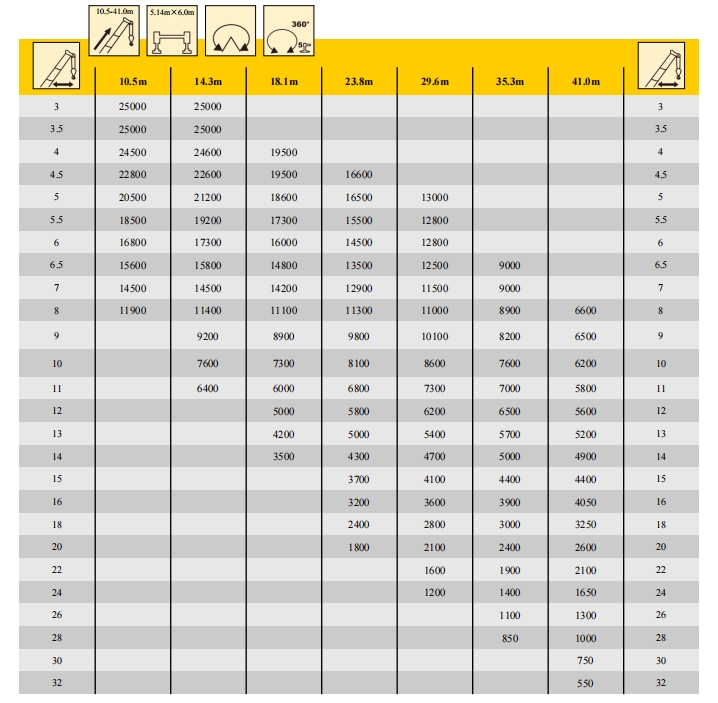

Lifting capacities(T 10.5~41.0m)

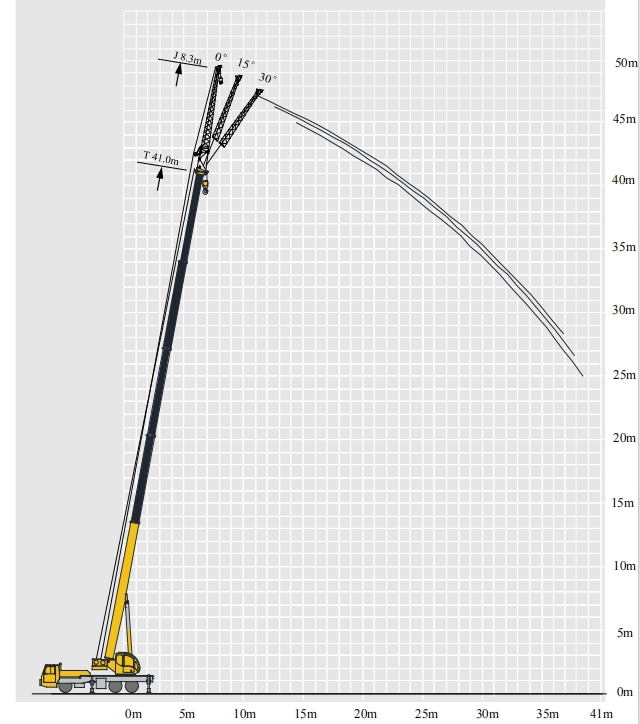

Lifting heights(Jib)

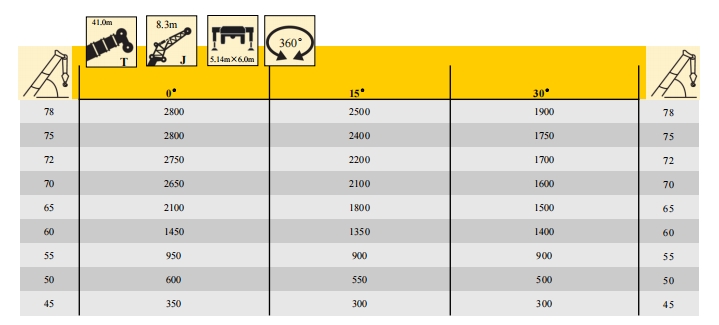

Lifting capacities








Transportation plan
