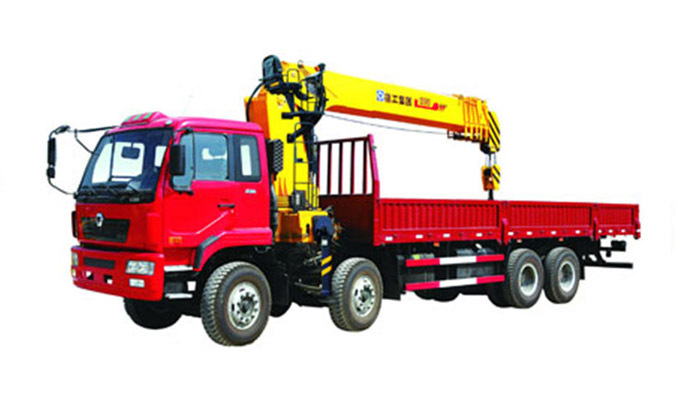

XCMG SQ14SK4Q Truck crane is a kind of equipment with many advanced features. It adopts single-cylinder cable synchronous telescopic technology and integral lifting winch mechanism, which significantly improves the working efficiency. At the same time, the crane is equipped with pentagonal and hexagonal boom technology, which not only enhances the neutral and cross-section bending ability of the boom, but also ensures the stability and safety of the operation. In addition, the compact hinge design allows the crane to adapt flexibly to a variety of operating environments while taking up less space.
| Item | Unit | SQ14SK4Q | SQ16SK4Q |
| Max Lifting Capacity | kg | 14000 | 16000 |
| Max Lifting Moment | T.M | 35 | 43.2 |
| Recommend Power | kw | 30 | 41 |
| Max Oil Flow of Hydraulic System | L/min | 63 | 80 |
| Max Pressure of Hydraulic System | MPa | 26 | 28 |
| Oil Tank Capacity | L | 160 | 260 |
| Rotation Angle | All Rotation | ||
| Crane Weight | kg | 4845 | 6455 |
| Installation Space | mm | 1300 | 1400 |
XCMG Group was formerly known as Huaxing Iron Factory, which was founded in 1943. The group was established in 1989 and is the founder, founder and leader of China’s engineering machinery industry.
