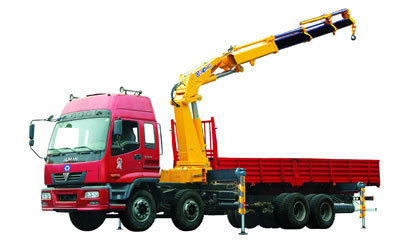

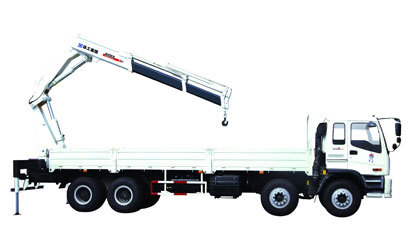

XCMG SQ8ZK3Q, SQ10ZK3Q, SQ12ZK3Q This series of cranes demonstrate XCMG’s outstanding technology and innovative design capabilities in the field of lifting machinery. These cranes have a strong lifting capacity, with a maximum lifting weight of 8 tons, 10 tons and 12 tons, respectively, to meet the needs of different sizes and complexity of engineering projects. Their optimized structural design and advanced hydraulic control system not only ensure the smoothness and accuracy of lifting operations, but also improve work efficiency and safety. These cranes also have a high degree of flexibility and adaptability, can be adjusted and operated according to different work needs, such as rotation, expansion and other functions, to achieve multi-functional applications.
| Item | Unit | SQ8ZK3Q | SQ10ZK3Q | SQ12ZK3Q |
| Max Lifting Capacity | kg | 8000 | 10000 | 12000 |
| Max Lifting Moment | T.M | 16 | 20 | 30 |
| Recommend Power | kw | 28 | 28 | 32 |
| Max Oil Flow of Hydraulic System | L/min | 40 | 40 | 55 |
| Max Pressure of Hydraulic System | MPa | 28 | 30 | 30 |
| Oil Tank Capacity | L | 160 | 160 | 160 |
| Crane Weight | kg | 2970 | 3477 | 4130 |
| Installation Space | mm | 1150 | 1150 | 1400 |
| Rotation Angle | ° | 360° | ||
XCMG Group was formerly known as Huaxing Iron Factory, which was founded in 1943. The group was established in 1989 and is the founder, founder and leader of China’s engineering machinery industry.
